PDF Upload to tempmate.®-Cloud

With the PDF-Upload feature, you can upload the recorded data from tempmate offline devices to our tempmate-Cloud.

The PDF is stored and available as an original PDF file in the tempmate-Cloud. Besides this, the recorded data is visualized in the tempmate-Cloud and can be managed together with all other devices in a single platform.

This feature is currently available for tempmate-S1, tempmate-S2 T and tempmate-S2 H. Other tempmate devices will follow.

At the left navigation bar, the PDF-Upload is available in the Devices section (highlighted in the picture on the left).

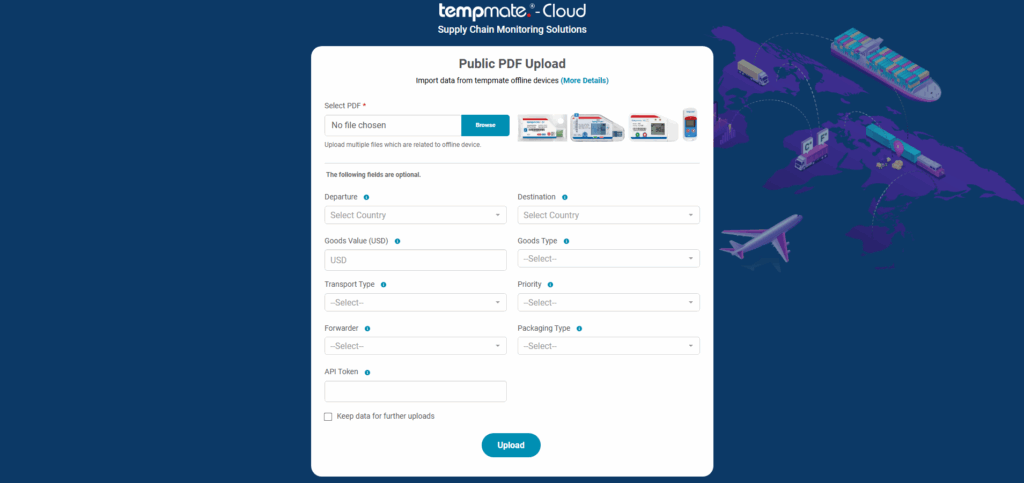

By clicking on the PDF-Upload button you will enter the upload area with several upload options:

You can upload the PDF file with the file explorer of your browser. Just connect the device to the PC and then click on the Choose File button to navigate to the PDF on the device’s memory. You can also select a file that was already stored on your PC. With the click on the Upload button, your PDF will be processed available shortly in the Overview.

You can also drag and drop multiple files at once and move them to the upload field at the right. They will be processed one by one and confirmed with a check mark when ready.

The first 20 uploads are for free, additional uploads are available on request.

When the PDF is uploaded, it is available at the Device Overview.

Here you have the possibility to click on the Edit button to modify the Basic Data (like name and description), the Alarm (recalculation of the alarm settings), or assign Responsible Users and Custom Fields.

With a click on the View button you can access the Evaluation page of the device.

Here you have the same options as used from the online devices like tempmate-GS2 to share or export the data, displaying the graph and table and review the device information with the calculated summary and alarm overview.

Please note: If you have selected different alarm thresholds before, the calculation is based on the new thresholds. You can also select a specific timerage at the top and then click the Apply Selected Timerange button in the graph to get the recalculated report accordingly.

For further information, you can get in contact with our tempmate Sales Team (sales@tempmate.com)  or contact our tempmate Helpdesk for technical support (support@tempmate.com).
