The evaluation page contains all details relating to the selected data logger – divided into the 2 large areas of data visualization and the device overview.
Above the data visualization, there are various filter settings that can be used to narrow down the data and other options for sharing the data.
There are 3 ways to display the visualized logger data from a specific time period:
- Using the quick filter in the top bar already mentioned. Here the user can choose between 24h, 7, 14 or 30 days. It is also possible to visualize all recorded data.
- Selecting different starts, in case the device has already been started several times (only possible with tempmate multi use loggers)

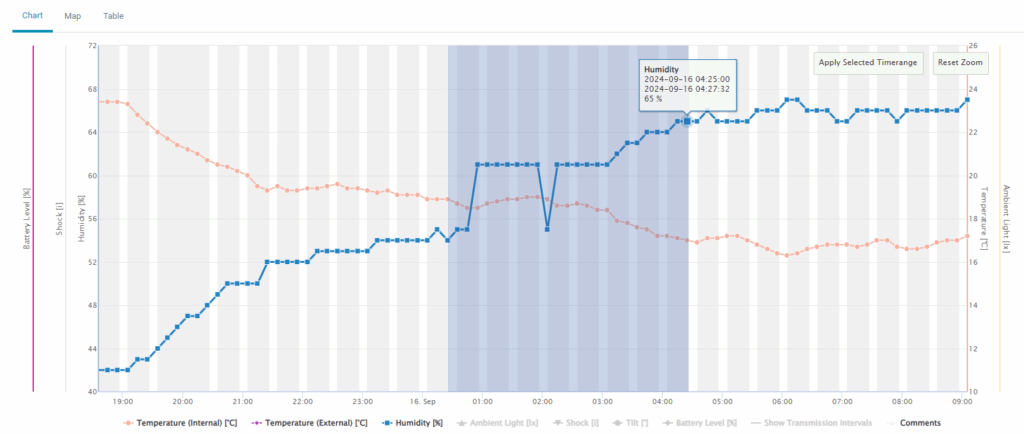

- Selecting the desired period by holding down the mouse button and highlighting it in the diagram.
Further options can also be selected in the top bar. If it is necessary to add further documents to the tempmate data logger (e.g. shipping documents of the delivery for which the logger is used), this can be done via ‘Upload Document’.
Sharing logger data with partners is also no problem: The two buttons ‘Share Device’ and ‘Share Current View’ and the so provided links can be used to easily forward the selected cloud view.
For further analysis outside the cloud, the data can be exported either as a PDF or CSV file via ‘Export’.
Data Visualization

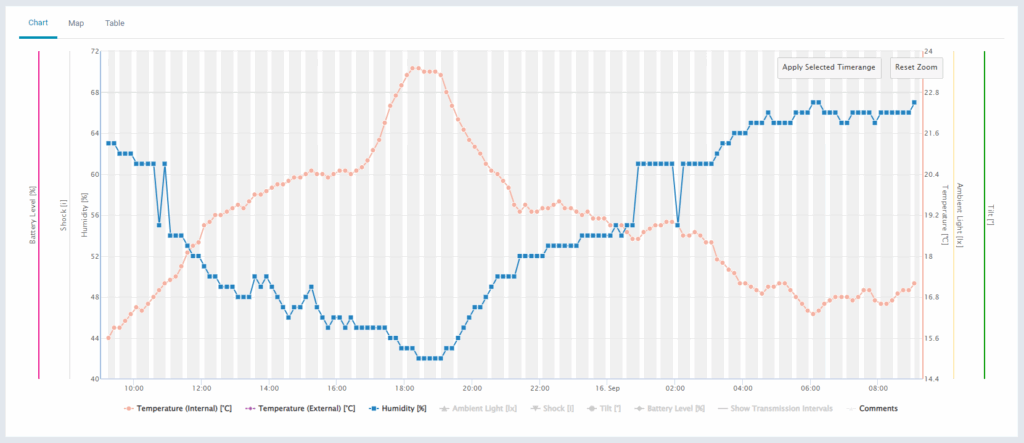

Different data is also displayed in different ways within the tempmate Cloud. Recorded environmental data, such as temperature or humidity values, are visualized via the diagram, which is set by default.
At the bottom of the diagram are all the values that are recorded and can either be added to or removed from the diagram by selecting or deselecting them.

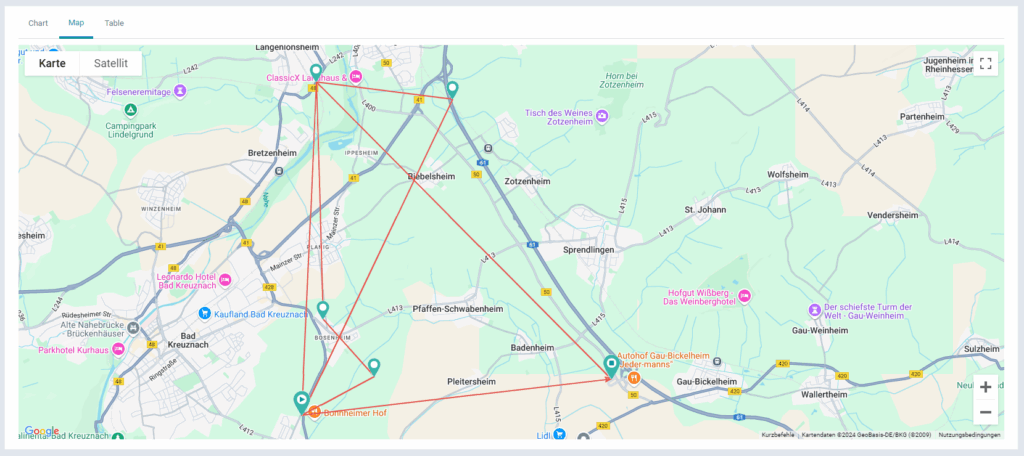

In addition to the ‘Chart’ tab, there is also a ‘Map’ tab and a ‘Table’ tab. While all localization data is displayed in the ‘Map’ tab, the ‘Table’ tab displays the chart data of all used sensors in a table view.
Device Details Overview
The overview of the data logger contains all the details that can be viewed for the device. These include specific measured values, units of measurement, the settings of the current configuration and documents that have already been uploaded.
